Software

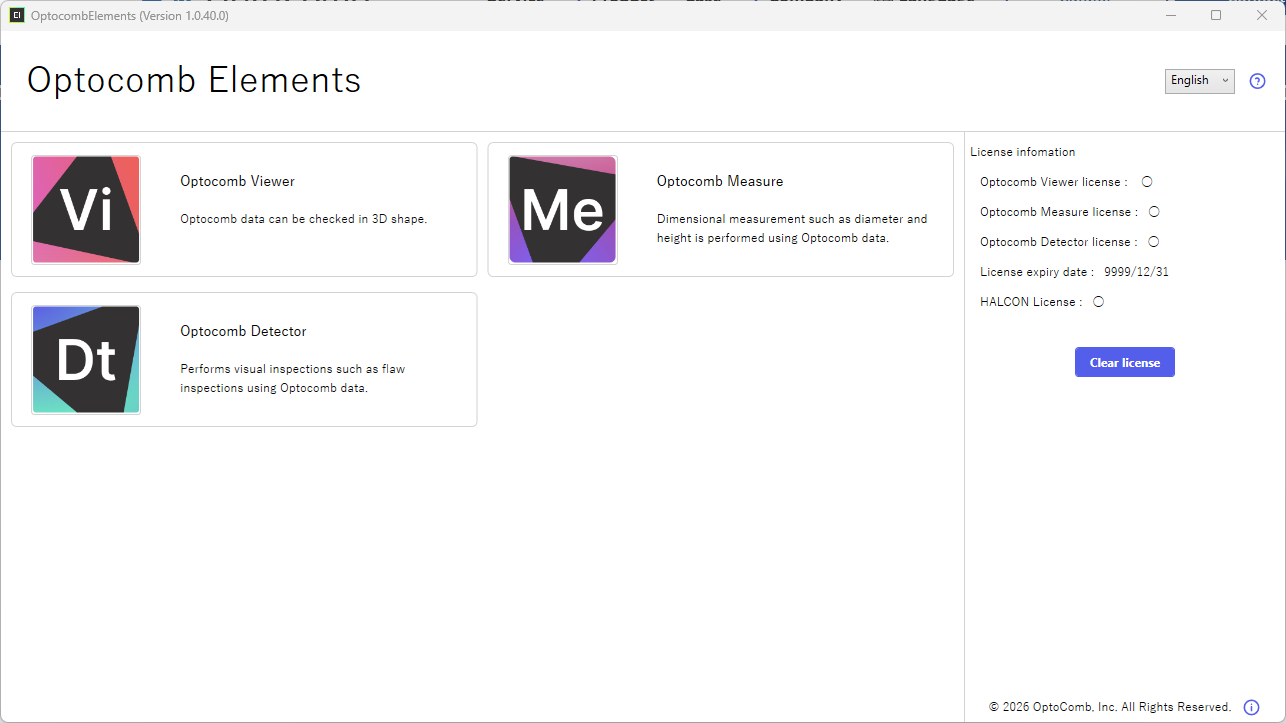

Optocomb Elements

Automatic inspection software for viewing 3D data, appearance, and shape and dimensions

The viewer, visual inspection, and shape and dimension inspection software licenses are packaged for ease of use.

By combining the necessary licenses for everything from visualization of 3D point cloud data to analysis processing, it becomes easy to automate the inspection process.

The functions are mainly specialized in profile analysis, automatic appearance analysis, and automatic shape and dimension analysis.

Problems that can be resolved

View more

Photo 1
3D Visualization
Photo 1
Visual inspection
Photo 1
Dimensional inspection(画像不明)

Main Functions

View more

Optcomb Viewer

With OptoComb Viewer, you can visualize and explore the high-resolution data of your OptoComb scanner. You can probe the smallest features and assess positions, diameters, dimensions and distances with high accuracy. OptoComb Viewer can also fit your 3D data with various geometries to gain even further insight into your part's 3D profile.



Optcomb Detector

A major advantage of XTIA's OptoComb 3D scanners is their micrometer resolution enabling the measurement of 3D microdefects such as burrs and scratches. The OptoComb Detector toolbox makes the most of this high-resolution data and offers unique algorithms and custom recipes dedicated to the automated detection, identification and quantification of 3D microdefects. OptoComb Detector is integrated with the 3D scanning process and enables a fully automated visual inspection from data acquisition to data analysis and inspection report generation. OptoComb Detector is thus an all-in-one toolbox for all visual inspection purposes.



Optcomb Measure

Dimension analysis is performed from 3D point cloud data obtained with an optical comb sensor. For example, we use dimensional analysis functions to automatically inspect specified locations, such as hole diameter, hole position, and distance from the datum.


- Creation of dimensional inspection recipe
- Analysis of dimensional information and creation of inspection reports



Applications

With its OptoComb technology, we offers innovative 3D metrology solutions for your target applications
